  6. 3M™ Speedglas™ Welding Helmet 9100 FX, with filter 9100XX, 541825

3M™ Speedglas™ Welding Helmet 9100 FX, with filter 9100XX, 541825

  • 3M ID 7000044501

Flip-up function allows workers to switch between clear visor and available Auto-Darkening Lens

3M™ Speedglas™ Auto-Darkening Lenses provide good contrast and high optical quality

Shade 5 side windows allows peripheral vision

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 225KB)

Details

Highlights
  • Flip-up function allows workers to switch between clear visor and available Auto-Darkening Lens
  • 3M™ Speedglas™ Auto-Darkening Lenses provide good contrast and high optical quality
  • Shade 5 side windows allows peripheral vision
  • Applications include assembly, assembly and mechanical, facility maintenance, grinding, machine operations, metal repair, sanding, and welding

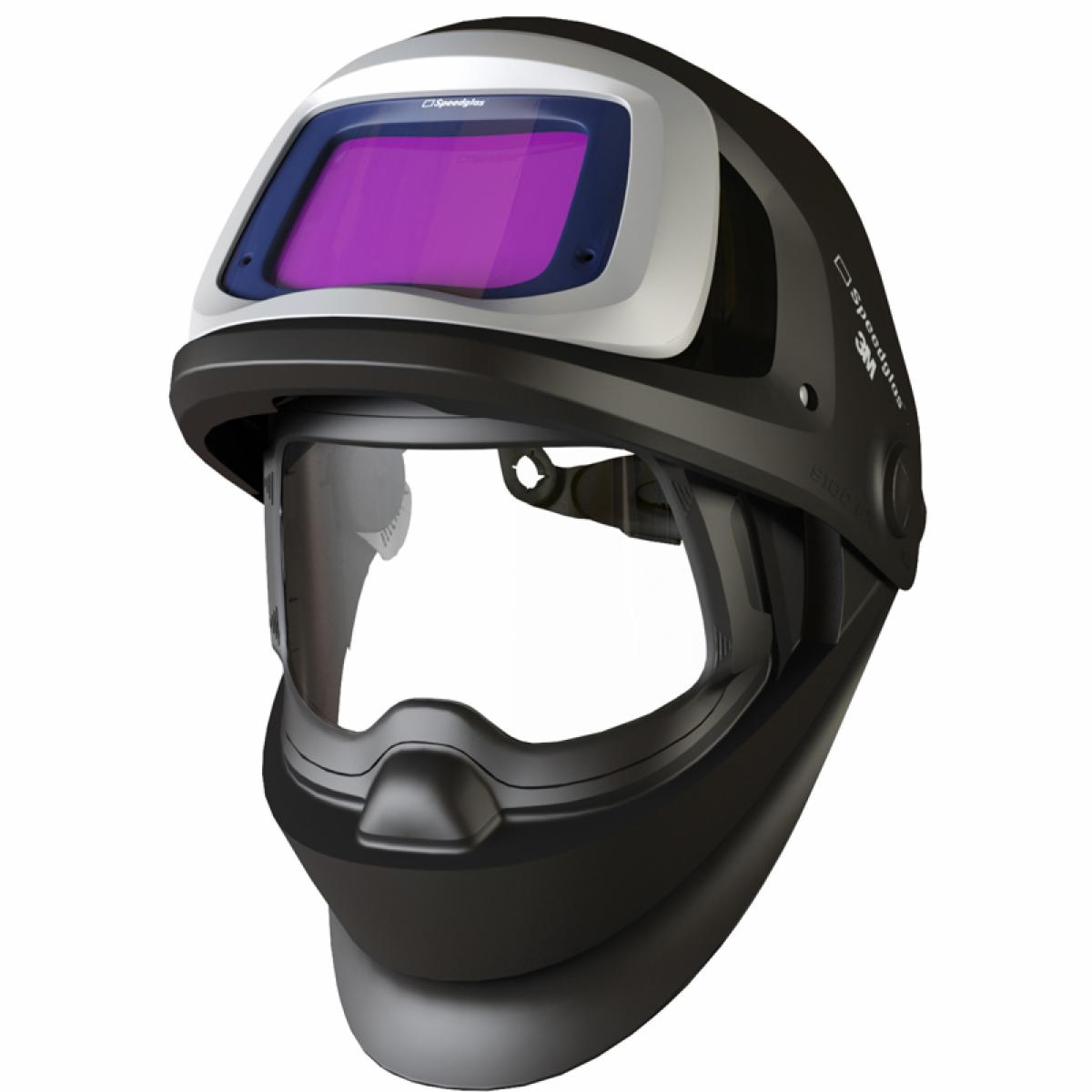

The 3M™ Speedglas™ 9100 FX Welding Helmet features a flip-up Auto-Darkening Lens design. It incorporates a secondary clear faceshield that's ideal for grinding and set-up work, while the available Auto-Darkening Lens helps protect against the intense light of MIG, TIG, and stick applications. A highly adjustable head suspension system allows the helmet to comfotably fit many different head sizes and shapes, while side windows in the welding helmet give each welder a wider viewing field to see more of their work area.

Switch jobs on demand This welding helmet is designed with a flip-up function that lets workers go from grinding to welding and back, without difficulty or delay. The protective shield features a wide viewing area, and available Auto-Darkening Lens helps protect eyes from intense light. Versatile protection The hard hat welding helmet assemblies are made with a polyethylene shell that helps protect against sparks, foreign matter, and falling objects. Shade 5 lenses on the side windows increase peripheral vision, helping welders stay more aware of their surroundings. Adjustable fit For non-hard hat assemblies, the internal headband creates a comfortable fit on the job. A ratchet mechanism in back provides an adjustable fit, and twin pads in front conform to the shape of the head. Dual pivot mechanisms on the sides control visor drop friction and the 'parked' position.

Suggested applications
  • Use for welding applications

Typical Properties

Resources

Connect with us. We’re here to help.

Need help finding the right product for your project? Contact us if you need product, technical or application advice or want to collaborate with a 3M technical specialist

Send Us a Message

Thank you for your interest in 3M. In order to help us manage and respond to your query effectively, we politely ask you to provide some key information, including your contact details. The information you provide will be used to respond to your request through email or telephone by a 3M representative or one of our authorised business partners with whom we might share your personal information consistent with the 3M privacy policy

  •
  •
  •
  •
  •
  • 3M takes your privacy seriously. 3M and its authorized third parties will use the information you provided in accordance with our Privacy Policy to send you communications which may include promotions, product information and service offers. Please be aware that this information may be stored on a server located in the U.S. If you do not consent to this use of your personal information, please do not use this system.

  • Send Message

Thank you for your contacting 3M

We have received your message and are now looking into your enquiry
One of our representatives will get in touch with you by phone or email

An error occurred.


Related products

ADF Dark State Shades Variable dark shade 5, 8, 9-13
ADF Shade Range Shade 5,8, 9 - 13
Battery Life ADF up to 2000 hours
Battery Type ADF: Lithium 3V
Brands Speedglas™
Cartridge or Filter Included N/A
Case Quantity 1
Dark Shades Shades 9-13
Features Eye & Face Protection
Headgear Type Welding Helmet with Grinding Visor
Lens Shade 5, 8 - 13
Lens Type Auto-darkening
Light State Shade 3
Number of Sensors 3
Product Code 541825
Product Series 9100 FX
Product Type Auto-darkening Welding Helmet
Recommended Application Metal Processing
Safety Helmet Included No
Sensitivity 5 levels (TIG>20A & MIG/MAG, Stick, Tack)
20 of 27
